Check Point IoT

This integration allows you to forward assets to Check Point IoT when Check Point SmartConsole asks for them. It also sends updated asset information to Check Point SmartConsole whenever an asset is updated on the appliance.

You can select How this integration works to view additional details. This integration is only available only on Central Management Console (CMC)s.

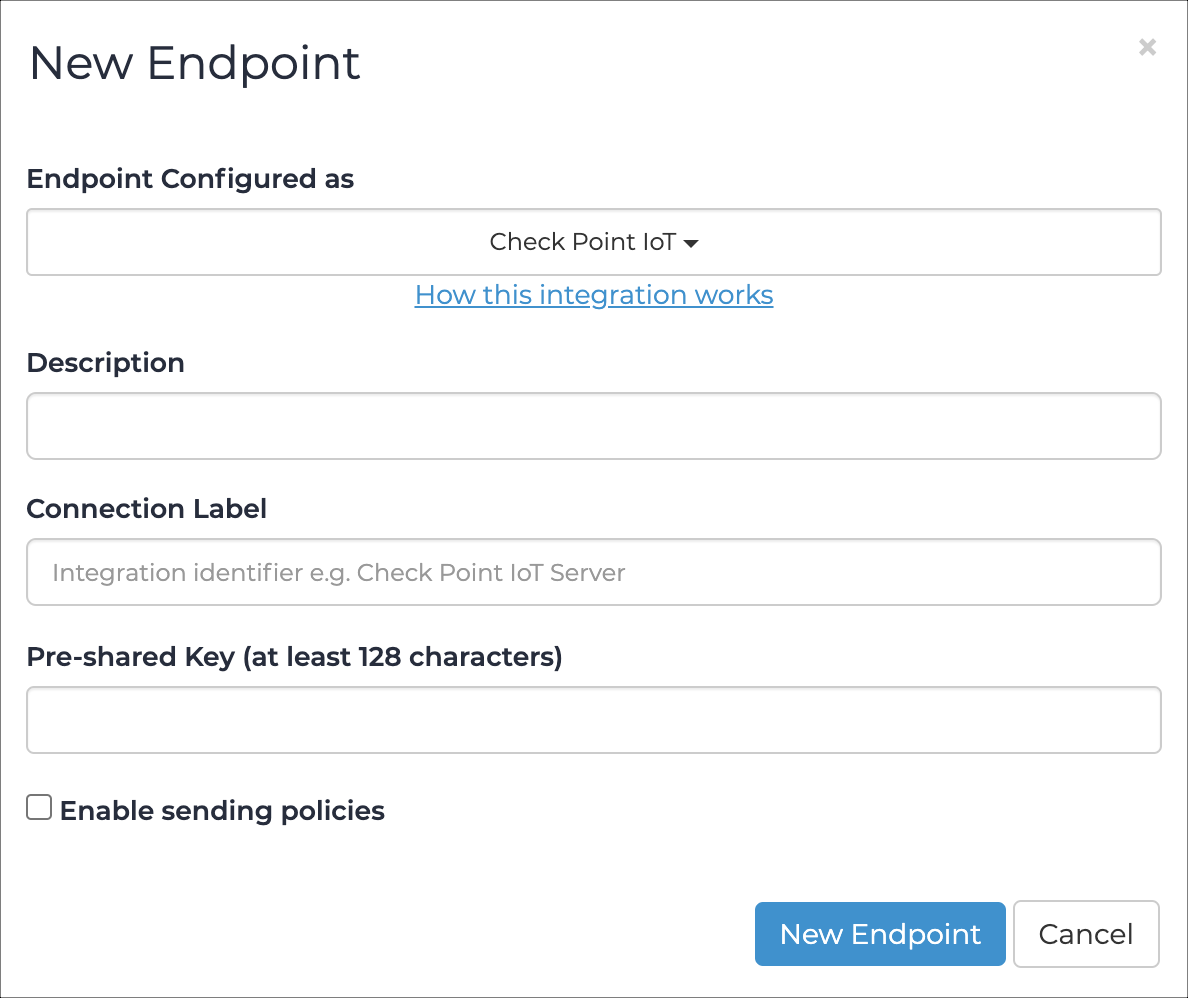

Check Point IoT dialog — Figure 1. Check Point IoT dialog

Policies

If the Enable sending policies checkbox is selected, then the appliance will qualify itself as the policy provider for Check Point IoT. It will send nodes blocking policies when Check Point SmartConsole asks for them.

Configuration

You need to configure the Check Point SmartConsole with:

Hostname: IPOfThisAppliance/websocket
Port: 443
Pre-shared Key: choose the same value when you configure this integration and the Check Point SmartConsole

Once you have created this configuration, you can test connectivity and authentication on the Check Point SmartConsole.
