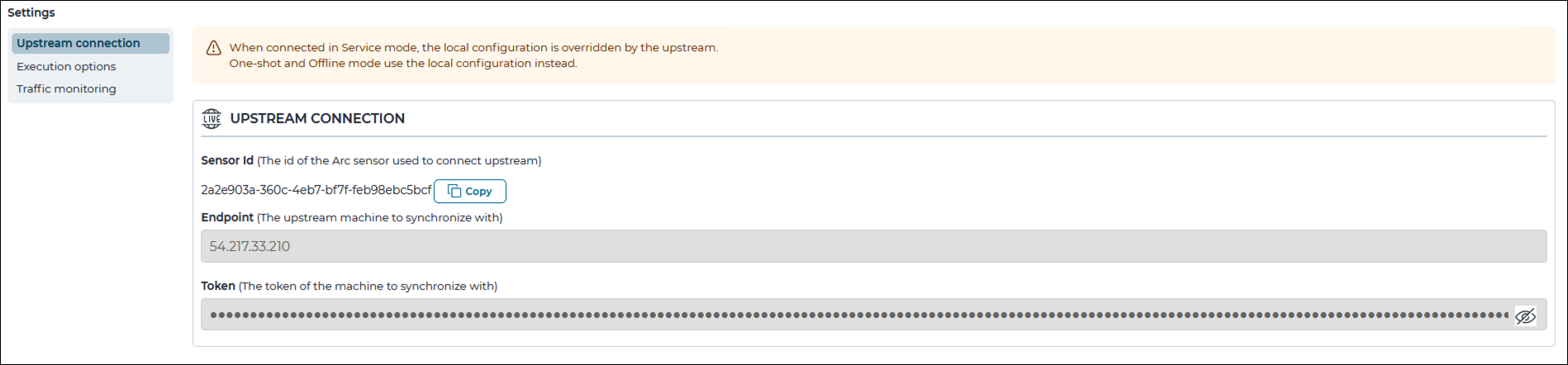

Upstream connection

The Upstream connection page lets you configure and verify the connection between the Arc sensor and the Guardian/Vantage endpoint. Key parameters include the endpoint internet protocol (IP) address and authentication token.

Sensor id

This is the identifier (ID) of the Arc sensor that is used to connect to the upstream sensor.

Endpoint

This shows the internet protocol (IP) address of the upstream machine that the sensor is connected to.

CAUTION:

After the endpoint is initially set to a Guardian under the Central Management Console (CMC), it is not possible to update it to another Guardian under the same CMC. You need to reconfigure the endpoint manually. This is best done with the help of Nozomi Networks Customer Support.

Token

The token Arc needs to authenticate to the Guardian/Vantage endpoint.

Check connection

This button checks if the connection parameters are correct.
