Configure an Arc sensor

It is possible to configure an individual Arc sensor directly from the Sensors details page for the related sensor.

About this task

For more details on each configuration setting, see:

Procedure

In the top navigation bar, select Sensors.
The Sensors page opens.
From the list, select the applicable Arc sensor.
In the top right section, select the icon.
A dialog shows.
In the Upstream page, choose the settings that you want.
Select Save.

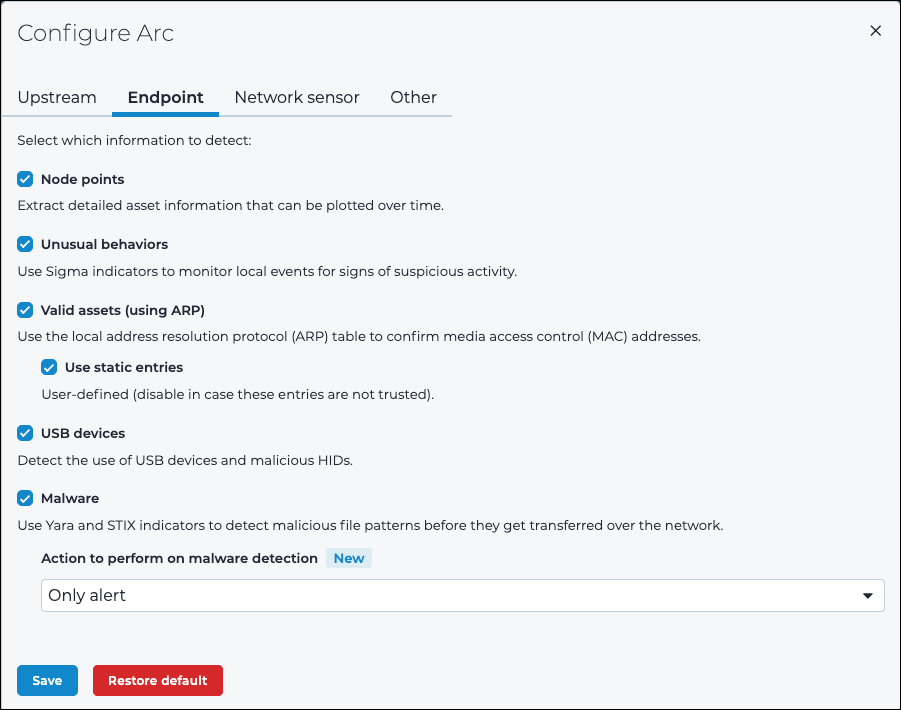

Select Endpoint.
The Endpoint page shows.
In the Endpoint page, choose the settings that you want.
Select Save.

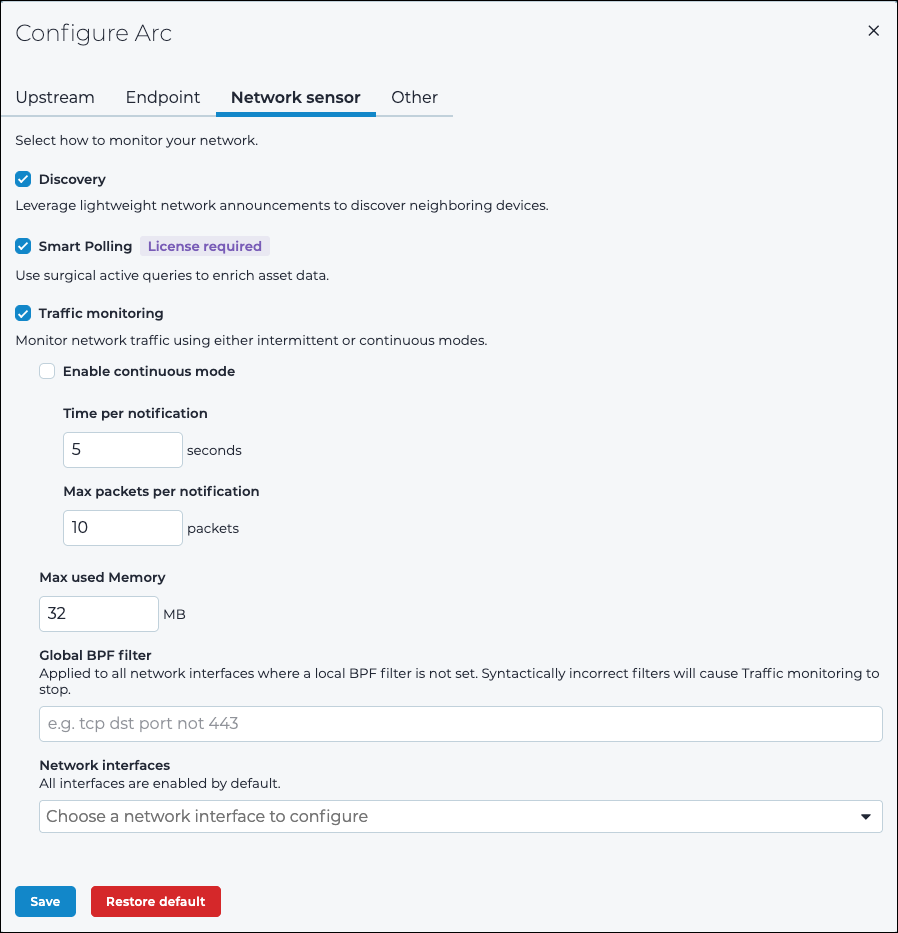

Select Network sensor.
The Network sensor page shows.
In the Network sensor page, choose the settings that you want.
Select Save.

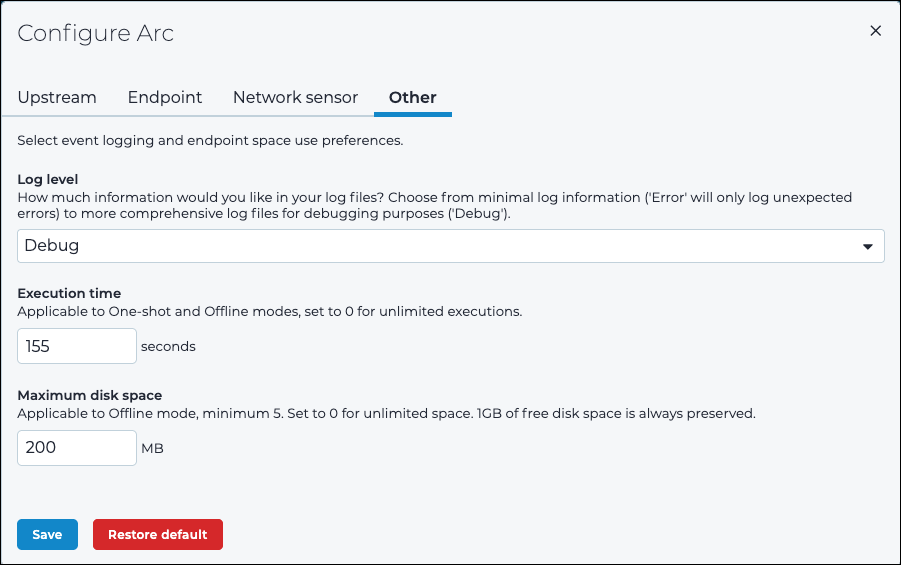

Select Other.
The Other page shows.
In the Other page, choose the settings that you want.
Select Save.

Results

The Arc sensor has been configured.
