Network

The Network page displays a live graph of connected assets, links, and filters in your network. You can apply filters, adjust the layout, and select node and link perspectives. Interactive options let you customize the visualization and export reports.

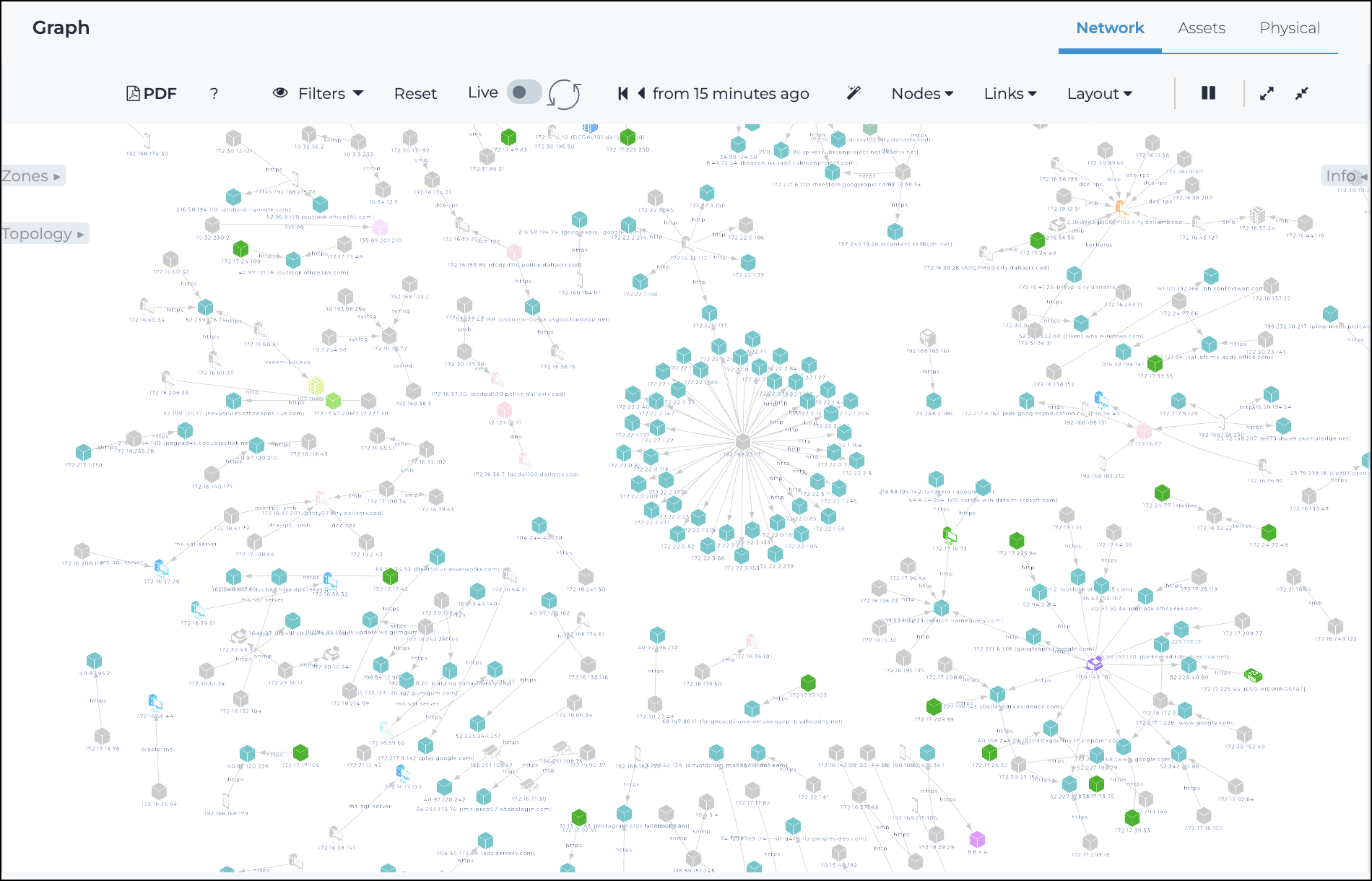

Figure 1. Network page

Screenshot of the Network page showing a live graph of assets with filter, layout, and node configuration options

Generate PDF report

The generate PDF icon lets you create a portable document format (PDF) report of the selected item, which will show in the Reports page when it is ready.

Filters

This indicates active graph filtering, when present. Filters can be from the filter bar (see R and S below), or activated from the zone/topology graph when you select a link/node in the zone/topology graphs. Once a filter is enabled with a value, the graph is automatically updated. If more than one filter is enabled, then a logical and criteria is applied. Only nodes that satisfy all of the specified filters are shown.

Note:
If a node passes the filters, then all of the directly connected nodes are shown in the graph. For example if a specific internet protocol (IP) filter is used, then the specified node is shown along with all the nodes connected to it.

Reset

This resets customizations and reloads the data.

Live / refresh

The Live icon lets you change live view on, or off. When live mode is on, the page will refresh approximately every five seconds.

Time

These icons let you select an activity time range.

For more details, Magic wand.

Nodes

This dropdown lets you select node visualization configuration options.



Links



This dropdown lets you configure visualization options.

Layout

This dropdown lets you select a layout for the graph. For more details, see Layout.

Play-pause

The play-pause icon lets you pause, or restart the motion of the graph.

Increase-Decrease icon size

The increase and decrease icons lets you change the size of the icons in the graph.
