Physical graph

The Physical graph page shows the device’s physical link to its switch, including port-level data. It is ideal for tracing, troubleshooting, or safely disconnecting assets.

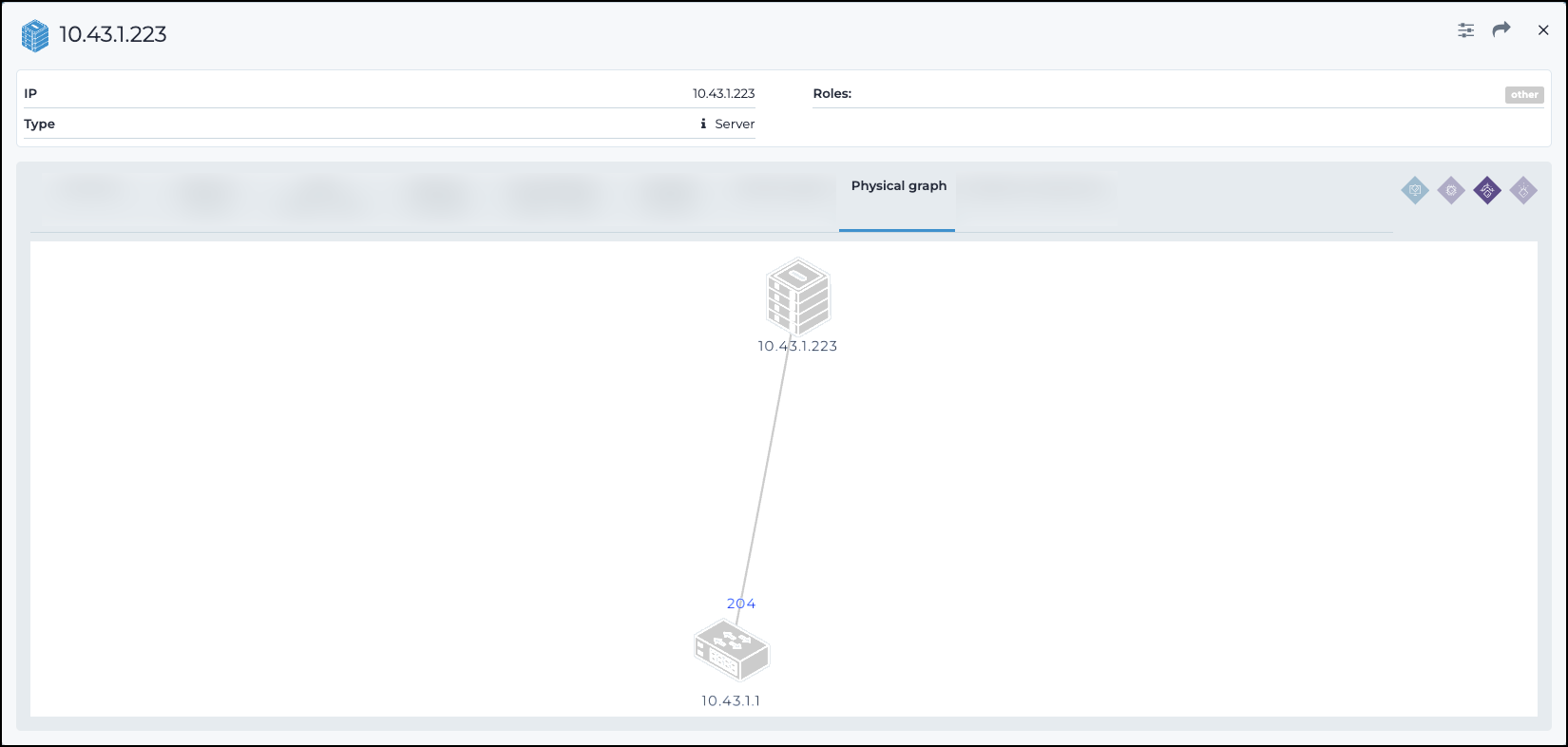

Figure 1. Physical graph tab

Physical graph page that shows a network diagram with two connected devices with IP addresses and interface identifiers

The Physical graph has a cable-level view that shows how a specific device is physically connected to the network. It shows the direct connection between the asset and its switch, including the exact port in use. This information provides clear insight into the physical location and wiring of the device.

This view supports operational tasks such as device tracing, maintenance, and isolation. Users can confirm port assignments or prepare to disconnect a device without referencing external network diagrams. The graph delivers actionable, asset-level visibility into physical connectivity.
