Map Nozomi Networks data with IntegrationHub ETL - example

An example of Nozomi Networks discovered Voice over Internet Protocol (VoIP) phones. These devices will be categorized in the SG-Nozomi Assets import set table as voip_phone under the type field. We will then map these devices into the ServiceNow Internet of Things (IoT) Device Configuration Management Database (CMDB) table.

About this task

You can add whatever conditions are required to correctly map the Nozomi Computers data to your own custom ServiceNow Configuration Management Database (CMDB) tables on this screen.

Procedure

  1. Follow the Map Nozomi Networks data with IntegrationHub ETL procedure up to and including step 7

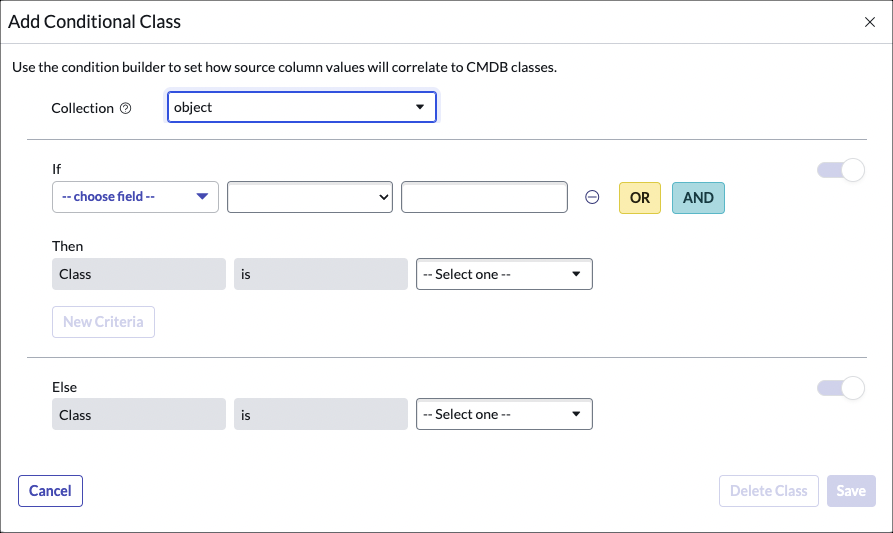

  2. Select Add Conditional Class.

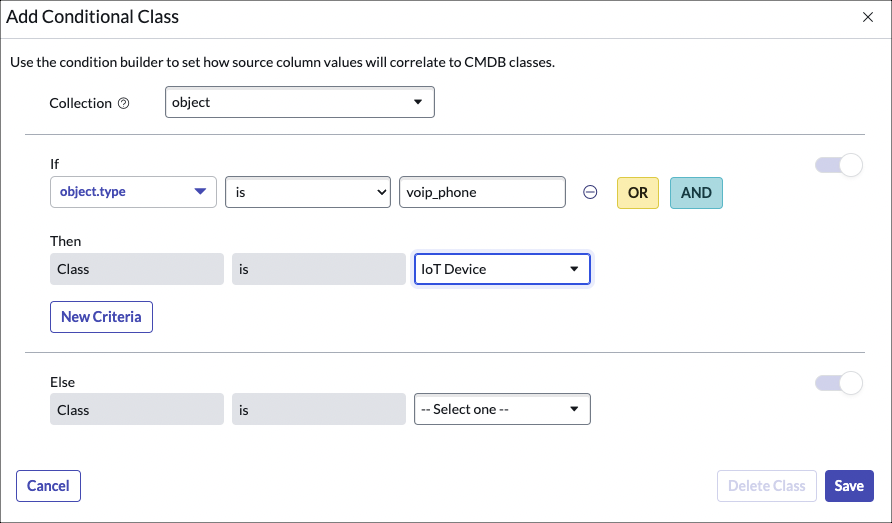

  3. Add conditions as necessary to correctly map the SG-Nozomi Assets data to your own custom ServiceNow CMDB.
  4. When you have finished, select Save.

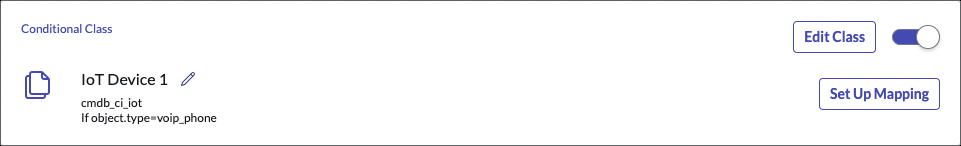

    The new Conditional Class table shows as IoT Device 1.


    Now, when the Service Graph Connector does a scheduled run, the data from the SG-Nozomi Assets table will be mapped into the ServiceNow CMDB IoT Device table.
