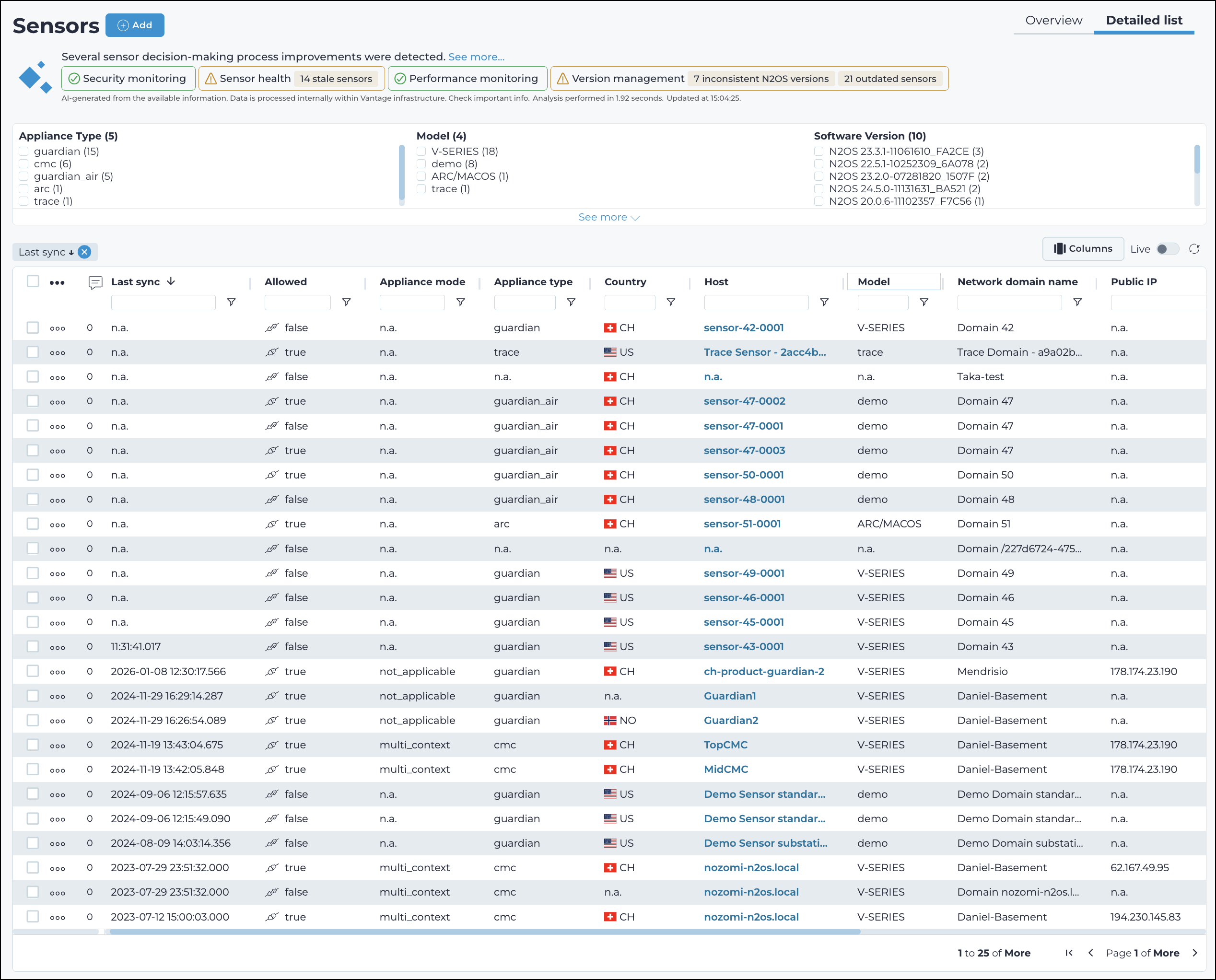

Detailed list
The Detailed list tab shows all the sensors connected to Vantage. Use this tab to view sensor status, manage sensors, and access individual sensor details.
Appliance type
Filters the table by the type of appliance running the sensor, for example, Guardian or Central Management Console (CMC).
Model
Filters the table by the model number of the sensor appliance.
Software version
Filters the table by the version of the sensor software currently installed.
Column descriptions
| Column label | Description |
|---|---|
| Last sync | The last time this sensor sent data to Vantage. Displays Never for inactive sensors. If the sensor is not syncing, see Sensor will not connect. |
| Alerts count | The total number of alerts raised by this sensor. |
| Alerts count last 5m | The number of alerts raised by this sensor in the last 5 minutes. |
| Allowed | Indicates whether this sensor is authorized to connect to Vantage. |
| Appliance mode | The operating mode of the sensor appliance. |
| Appliance type | The type of appliance running this sensor, for example, guardian or cmc. |
| Country | The country where this sensor is located. |
| CPU percentage | The current central processing unit (CPU) usage of the sensor as a percentage. |
| Description | A user-defined description of the sensor. |
| Disk usage percentage | The current disk usage of the sensor as a percentage. |
| Health | The overall health status of the sensor: Good, Average, Poor, or Unknown. |
| Host | The logical name of the computer hosting the sensor. |
| IP | The internet protocol (IP) address of the sensor. |
| Latitude | The latitude coordinate of the sensor's physical location. |
| Links count | The total number of network links detected by this sensor. |
| Location source | The method used to determine the sensor's geographic location. |
| Longitude | The longitude coordinate of the sensor's physical location. |
| Memory free | The amount of memory currently available on the sensor. |
| Total memory | The total memory capacity of the sensor. |
| Memory used | The amount of memory currently in use on the sensor. |
| Memory used percentage | The current memory usage of the sensor as a percentage. |
| Model | The model number of the sensor appliance, for example, N1000R2 or V_SERIES. |
| N2OS version | The version of Nozomi Networks Operating System (N2OS) running on this sensor. |
| Network domain name | The domain name of the network the sensor monitors. |
| Nodes count | The total number of nodes detected by this sensor. |
| Nozomi risk | The Nozomi-calculated risk score for this sensor. |
| Produces assets | Indicates whether this sensor is configured to generate asset data. |
| Public IP | The public-facing IP address of the sensor. |
| Risk | The current risk assessment of the sensor. Based on the alerts the sensor has raised, this is the maximum risk value reported in the last period. |
| Serial number | The unique serial number of the sensor hardware. |
| Site | The site text reported by the sensor appliance. |
| Site name | The name of the Vantage site this sensor is assigned to. |
| Software version | The version of the sensor software currently installed. |
| Status | The current connection status of the sensor. |
| Total Mbps | The total network throughput, in megabits per second, currently being monitored by this sensor. |
| Uptime | The duration the sensor has been continuously running since its last restart. |
| Variables count | The total number of variables detected by this sensor. |
