Upstream

Configure and verify the connection between the Arc sensor and the upstream machine using an IP address and authentication token. The page also displays the sensor ID and optional certificate validation and web proxy settings.

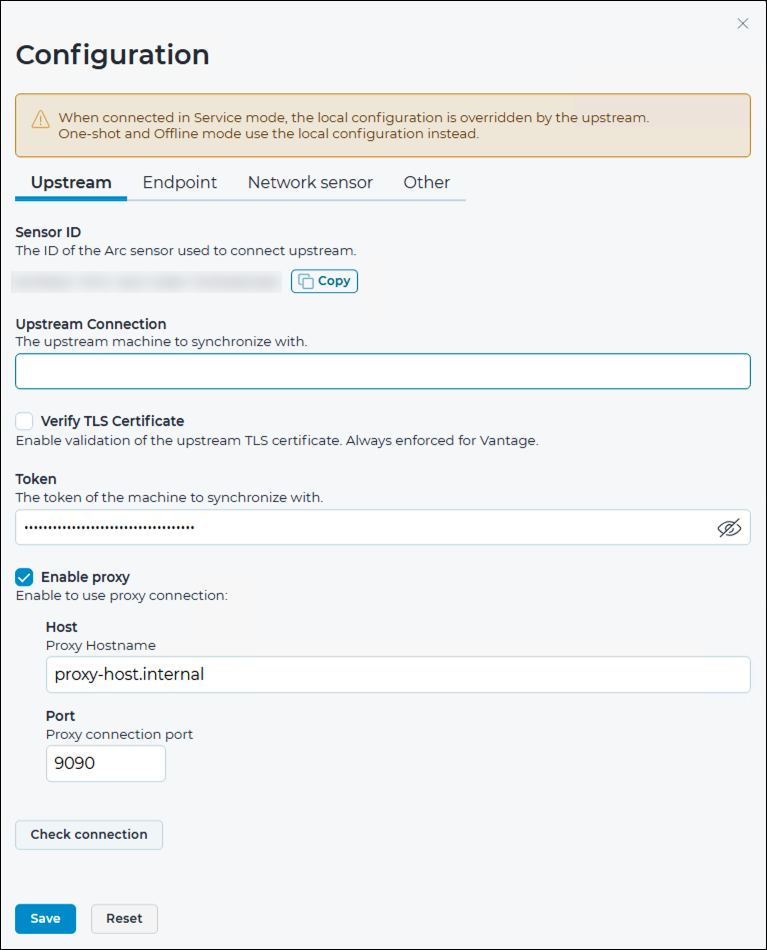

Upstream connection page showing Arc sensor ID, upstream connection IP address, authentication token, and web proxy fields with a Copy button for the sensor ID — Figure 1. Upstream

Sensor ID

This is the identifier (ID) of the Arc sensor that is used to connect to the upstream sensor.

Upstream Connection

This shows the internet protocol (IP) address of the upstream machine that the sensor is connected to.

CAUTION:

After the upstream connection is initially set to a Guardian under the Central Management Console (CMC), it is not possible to update it to another Guardian under the same CMC. You need to reconfigure the upstream connection manually. This is best done with the help of Nozomi Networks Customer Support.

Verify TLS Certificate

Select this option to enforce verification of the upstream transport layer security (TLS) certificate when connecting to Guardian. When using Vantage, TLS certificate validation is always enforced, regardless of this setting.

Token

The token Arc needs to authenticate to the Guardian/Vantage endpoint.

Enable proxy

Select this option to connect to the upstream endpoint through a web proxy.

Host: The hostname of the proxy server
Port: The port that the proxy server uses for connections

Check connection

This button checks if the connection parameters are correct.
