Other

Set Arc log verbosity, data collection duration, disk space usage limits, and the offline archive naming strategy for One-shot and Offline modes. These options help manage local resource usage and troubleshoot performance.

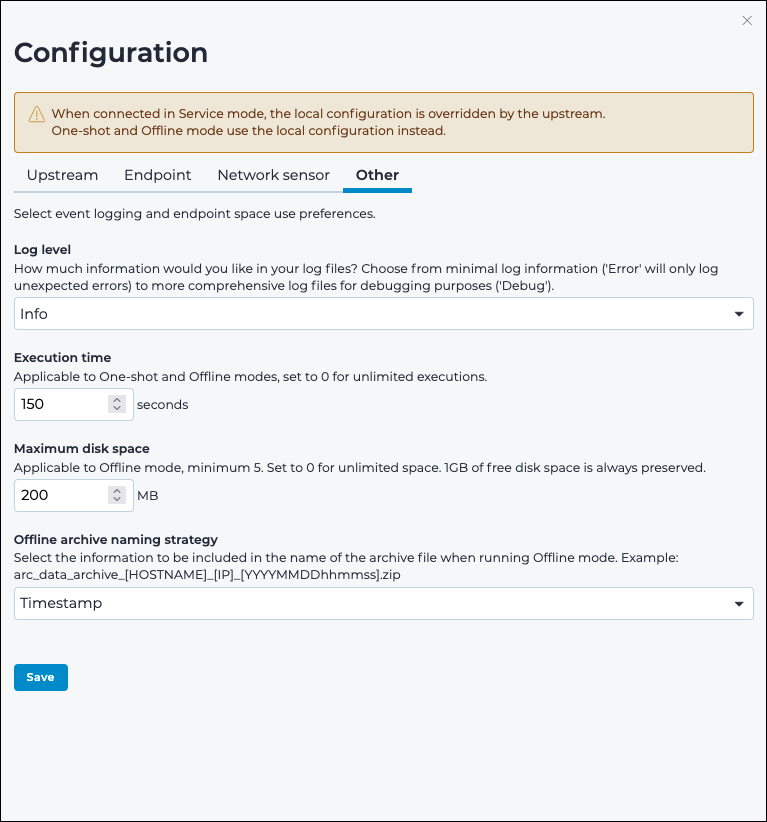

Other configuration page showing log level dropdown, execution time in seconds, maximum disk space in megabytes, and an offline archive naming strategy dropdown for One-shot and Offline modes. — Figure 1. Other

Log level

This dropdown lets you select the verbosity level for the log files. The options are:

Debug
Info
Warning
Error

The logging system options have an increasing level of verbosity, from the least verbose to the most verbose. Error < Warning < Info < Debug.

Error: Creates a minimalistic log, only unexpected errors are logged
Warning: Creates extra errors that might show on some operating system (OS)s, but that are generally considered as acceptable
Info: Logs relevant successful events, it shows the program’s progress (recommended)
Debug: Logs extra events that are normally useful for debugging purposes. Given its verbosity it is best to activate it only when debugging activities are involved

Note:

This setting applies to:

arc.log.txt
arc_service.log.txt
sp.log.txt

It doesn't apply to setup.log, which covers Arc's initialization process, before the configuration has been loaded and applied.

For more details, see Log files.

Execution time

This field lets you set the time that Arc will run to collect data. This is applicable for One-shot and Offline modes.

Note:

When this is set to 0, the execution time is interpreted as infinite.

Maximum disk space

This field lets you control the maximum amount of disk space in megabyte (MB) that will be used for Offline mode.

Offline archive naming strategy

This dropdown lets you select the information to include in the name of the archive file that Arc creates when running in Offline mode. For example: arc_data_archive_[HOSTNAME]_[IP]_[YYYYMMDDhhmmss].zip.
