Scan logs

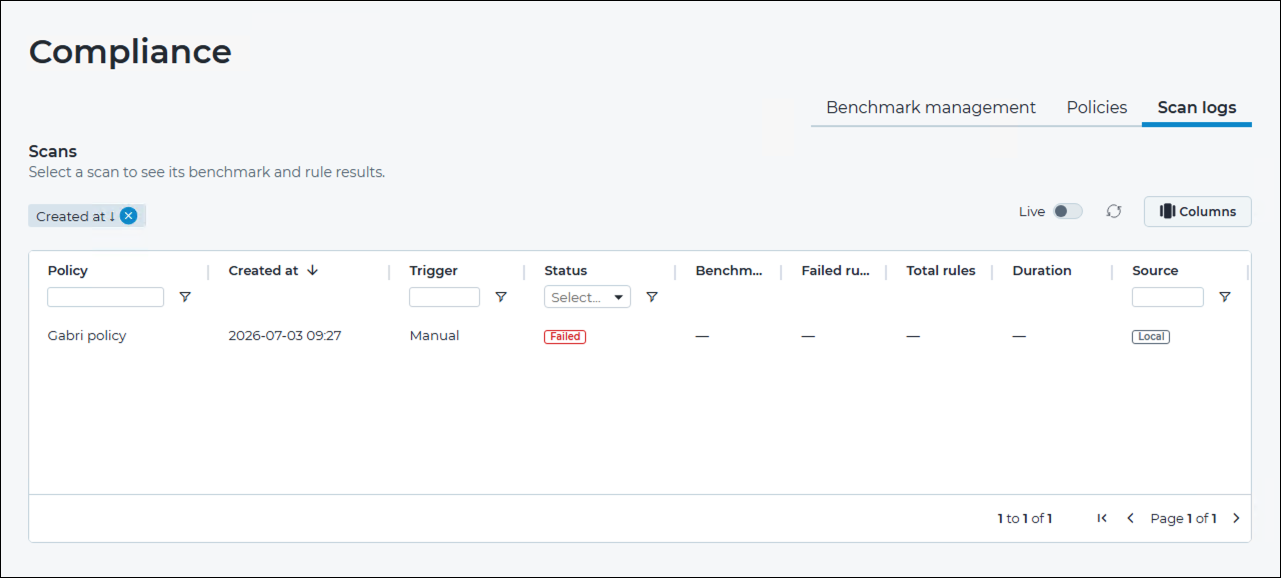

The Scan logs tab lists the compliance scans that have run on this Arc sensor.

For more details, see Compliance scan logs.

Because Arc scans only the host it runs on, the Scan logs page has no Target column. Because Arc has no scheduling, it has no Schedule column either. Instead, it has a Source column, matching the one on the Policies page.

Column descriptions

Column label	Description
Policy	The policy the scan ran.
Created at	When the scan was created.
Trigger	How the scan was triggered: Manual.
Status	The scan's status. See Compliance statuses.
Benchmarks	The number of benchmarks included in the scan.
Failed rules	The number of rules that failed.
Total rules	The total number of rules evaluated.
Duration	How long the scan took to run.
Source	Whether the scan ran from a locally-created policy (Local), or was requested from upstream (Remote).
