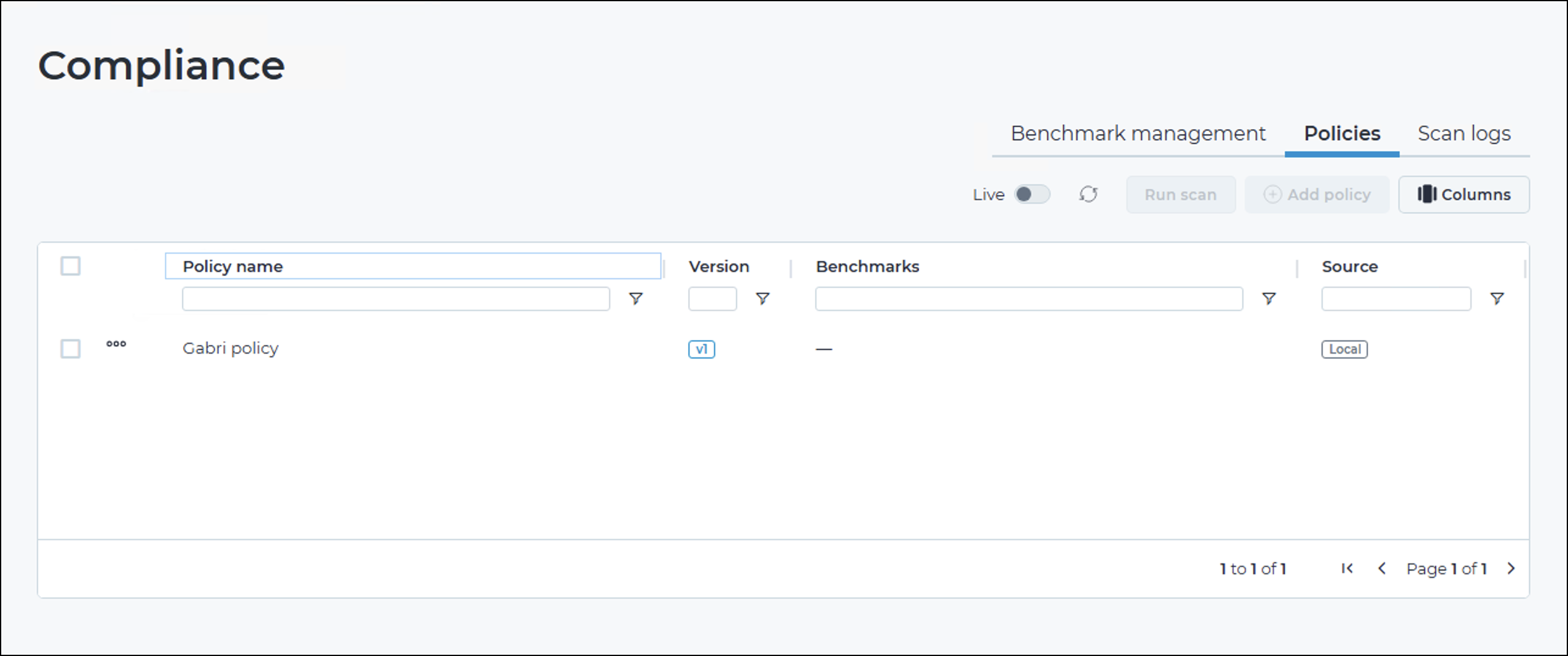

Policies

The Policies tab lists the policies configured on this Arc sensor.

For more details, see Compliance policies.

The Policies page is read-only: policies are created and managed from the upstream system, and each scan requested from upstream creates a policy on this sensor. The Policies page has no Schedules column. Instead, it has a Source column. For more details, see Policy source.

Column descriptions

The Rules, Updated, and Description columns are hidden until you enable them from the column panel.

Column label	Description
Policy name	The name of the policy.
Version	The current version number of the policy.
Benchmarks	The benchmarks included in the policy.
Rules	The number of rules in the policy, across all of its benchmarks.
Updated	When the policy was last updated.
Description	The description of the policy.
Source	Whether the policy was created locally (Local), or was created automatically by a scan requested from upstream (Remote).
